Blast Chiller Freezer

  • Home
  • Blast Chiller Freezer

All Service

Manufactured with German technology to increase life of perishable products



Floor Mounted Blast Freezers and Chillers

High static pressure air throw volume with contemporary design acknowledge to achieve temperature in a given pull down time

  • Models available with 2, 4, 6 & 8 Fans
  • Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
  • Air, Electric, Water & Hot gas option
  • Fin spacing available from 4 mm to 10 mm
  • Saw tooth & plain blade fan options available (in Ziehl Abegg fans)
  • Rippled fin edges for turbulence air flow
  • Available for Freon & Ammonia refrigerants
  • GI powder coated & SS 304 casing for rust free operation
  • Cooling capacity ranging from 5 kW to 120 kW
  • Proven quality fans: Ziehl Abegg, EBM or Favelle
  • Bullet expansion on copper tubes in Freon units, and hydraulic expansion on SS tubes in ammonia units
  • Corrugated fin design for low pressure drop and efficient heat transfer

V-Type Floor Mounted Blast Freezers & Chillers

High static pressure air throw volume with contemporary design acknowledge to achieve temperature in a given pull down time

  • Models available with 1 to 4 Fans
  • Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
  • Air, Electric, Water & Hot gas option
  • Fin spacing available from 4 mm to 10 mm
  • Bullet expansion on copper tubes in Freon units,and hydraulic expansion on SS tubes in ammonia units
  • Corrugated fin design for low pressure drop and efficient heat transfer
  • Available for Freon & Ammonia refrigerants
  • GI powder coated & SS 304 casing for rust free operation
  • Cooling capacity ranging from 20 kW to 130 kW
  • Tube Axial Fans
  • Rippled fin edges for turbulence air flow

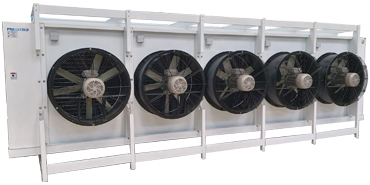

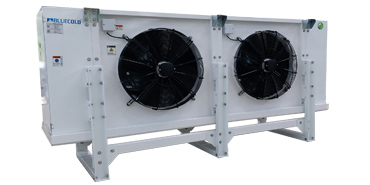

Ceiling Mounted Blast Freezers and Chillers

High static pressure air throw volume with contemporary design acknowledge to achieve temperature in a given pull down time

  • Models available with 1 to 8 Fans
  • Bullet expansion on copper tubes in Freon units,and hydraulic expansion on SS tubes in ammonia units
  • GI powder coated & SS 304 casing for rust free operation
  • Cooling capacity ranging from 5 kW to 120 kW
  • Proven quality fans: Ziehl Abegg, EBM or Favelle
  • Rippled fin edges for turbulence air flow
  • Available for Freon & Ammonia refrigerants
  • Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
  • Air, Electric, Water & Hot gas option
  • Fin spacing available from 4 mm to 10 mm
  • Saw tooth & plain blade fan options available (in Ziehl Abegg fans)
  • Corrugated fin design for low pressure drop and efficient heat transfer

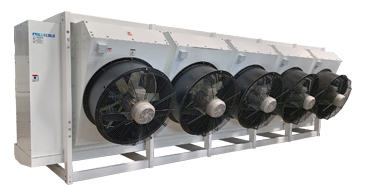

Angular Shaped Blast Freezers and Chillers

High static pressure air throw volume, banded at an angle to throw directly on the products with contemporary design acknowledge to achieve temperature in a given pull down time

  • Models available with 1 to 8 Fans
  • Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
  • Air, Electric, Water & Hot gas option
  • Fin spacing available from 4 mm to 10 mm
  • Saw tooth & plain blade fan options available (in Ziehl Abegg fans)
  • Rippled fin edges for turbulence air flow
  • Available for Freon & Ammonia refrigerants
  • GI powder coated or SS 304 casing for rust free operation
  • Cooling capacity ranging from 5 kW to 120 kW
  • Proven quality fans: Ziehl Abegg, EBM or Favelle
  • Corrugated fin design for low pressure drop and efficient heat transfer
  • Bullet expansion on copper tubes in Freon units,and hydraulic expansion on SS tubes in ammonia units
